Ever expanding sensor networks that collects high-resolution spatial datasets provide many opportunities for hydrological sciences , while bringing challenges in large-scale data handling and processing . There are many challenging tasks that employ sensor networks regarding organization and customization of the datasets  within a watershed for users dealing with the data. The watershed (i.e. drainage basin or catchment area) of a location represents the land area in which any precipitation eventually flows into the same outlet. Thus, delineation of the watershed can be defined as finding the catchment area of a point . Watershed delineation helps users identify the surface water features within a watershed and understand the downstream impacts when planning and implementing water quality and quantity related protection and mitigation actions. Watershed delineation is used extensively in many information systems  and visualization applications . Since hydrologic modeling efforts vastly assume that watershed delineation is done accurately, the performance of watershed delineation tools becomes more important. Providing the most accurate results , manual watershed delineation is done by finding water divides on topographic maps  while its automation is an ongoing research interest in the field of hydrology. Since topography takes a crucial role in hydrological modeling, the key aspects of the modeling efforts start with the representation of geography in the digital environment. Thus, all watershed delineation tools and libraries depend on the generation of digitally expressed topography data. Creation of this data broadly achieved by flow routing algorithms. Several cumulatively developed flow routing algorithms are employed for generating the data required for watershed delineation in both software packages and within standalone applications. Algorithms including D8, Rho8  and D8-LTD are used to create grid-based flow matrices from the digital elevation model (DEM) data. DEMs are rectangular grid-shaped datasets that provide elevation information of the surface at discrete geolocations . While the hydrologic network data generated by the aforementioned algorithms are widely exploited by watershed delineation applications, they can be used for other tasks in hydrology. The D8 algorithm is the most used one among those methods  and, consequently, the data used within this study is generated by taking advantage of the D8 algorithm.
Early examples [15, 20, 24] of automated watershed delineation start with advancements in DEM data generation. Jones et al.  utilized triangle-based terrain models in watershed delineation. Nelson et al.  presented an algorithm that is centered upon triangulated irregular networks to delineate watersheds by finding their boundaries. Tarboton  introduced an approach in watershed delineation exploiting flow directions as the steepest downward slope. In , Lin et al. studied a GIS-based watershed analysis system, WinBasin. While WinBasin provides a system with incorporated flow direction calculation algorithm, it also finds the watershed using flow direction matrix. Chu et al.  introduced an alternative way of delineating watersheds precisely by taking complex land surfaces such as flats and combined puddles into account. Haag and Shokoufandeh , presented an algorithm to delineate watershed boundaries by, rather than discovering the internal area, marching around the edges of its corresponding region namely using Haag Shokoufandehs March (HSM) algorithm. Again Haag et al.  presented a new algorithm with a similar but faster approach called Watershed Marching Algorithm (WMA) in order to delineate watersheds from 2D flow direction grids. Even though they employed differentiable approaches, all these algorithms share the concept of accumulation of cell contributions across a landscape while obtaining this information from flow direction grids .
Various tools within geographic information systems (GIS) have been developed in order to automate this process. One of the most used watershed delineation tools comes within the Spatial Analyst extension of ArcGIS which is a commercial product. Being an open source alternative to ArcGIS, QGIS provides a free-to-use watershed delineation tool named as Watershed Basins Algorithm. While this option enables researchers to run delineation on their own data, it’s not easily accessible considering that it needs the installation of a comprehensive GIS software package into the system. Another free solution is the Geographic Resources Analysis Support System (GRASS). GRASS is an open source GIS package which can be used both through command line and user interface. This solution is relatively easier to integrate into new software systems by taking advantage of its command line application programming interface (API). Although GIS systems can be used on server-side, they may not be the optimal solution for web applications considering the computational load on the deployed server to solve the algorithm for a given dataset. One watershed delineation tool accessible on the web is the environmental Resources Assessment and Management Systems (eRAMS). eRAMS provides a cloud-based watershed delineation tool while widely depending on GDAL package’s capabilities. Considering GDAL is a software package that is not supported to run on browsers, eRAMS handles all processing on server-side including the watershed delineation. Other tools that are not as popular as those already mentioned also provide a suitable environment for watershed delineation on-demand but lack the integration to other systems [12, 21]. Albeit some studies present web-based systems  to delineate watersheds, they still handle this task on server-side rather than utilizing client’s computing power.
Proposed software modules within this study involve the implementation of two separate watershed algorithms in various programming languages and technologies (Fig. 1). While the first algorithm is for conventional programming systems, the second one is specified for WebGL environment in order to utilize Graphical Processing Units (GPUs) for watershed delineation. The watershed delineation algorithms run on flow direction data for each of these implementations. Flow direction data is generated using the D8 algorithm from digital elevation data, and it has the data structure of a matrix. Each cell or item in the matrix represents the direction of the flow to one of the eight directions. Numbers 1, 2, 3, 4, 6, 7, 8 and 9 represent the flow to northwest, north, northeast, west, east, southwest, south and southeast respectively (Fig. 2). Potential sink in the landscape can be handled at the flow direction step. If the flow direction data contains sinks, algorithm skips cells with no drainage or flow information and process neighboring cells. This might allow sinks to be included within the watershed area depending on the sink location.

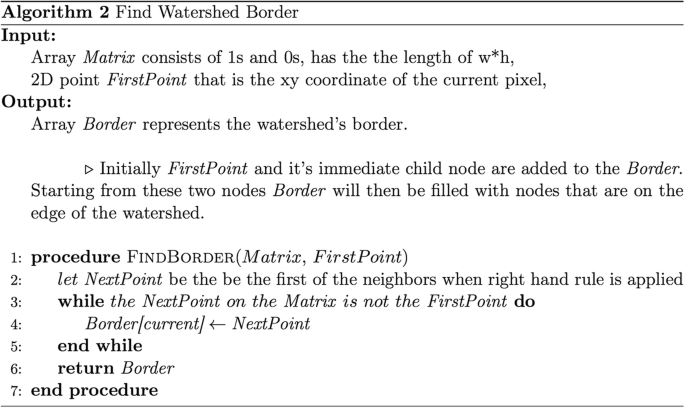

The main watershed delineation algorithm consists of two separate functions. The first function handles finding the watershed area with the time complexity of O (wh) where w and h are the weight and the height of the data matrix, respectively (Fig. 3). The second function finds the watershed border using the output of the first algorithm in O(n) time where n is the number of edge cells within the watershed (Fig. 4). Watershed finding algorithm is similar to the breadth-first search (BFS) though intensively optimized to specialize for watershed delineation. Rather than adding to the queue and consuming nodes to visit from the queue, this algorithm presents a two-way visit and store mechanism within an array. In each iteration, the visit and store parts of the array are switched, and new nodes are explored by this mechanism as iteration continues. The algorithm uses direction arrays to ease understanding flows within the data. In order to find the border around the computed watershed area, the output array is fed to the border delineation algorithm. Border delineation algorithm is a special implementation of marching algorithm. It simply walks around the watershed found by the previous step. First, it takes the initial point (outlet) on the watershed as the baseline, and walks around the watershed until it returns to the first point to finish calculating the border iteratively.
The flow routing data that is used for experiments in this study consists of 5900 × 3680 cells for the State of Iowa within a rectangular buffer zone. Data is generated using the 90-m resolution DEM data and takes approximately 150 MB of space on the disk as a raster file. Especially for client-side solutions this amount of data creates a huge overhead when conveyed to the client-side on the web. In order to reduce the transferred data amount between the server and the client, the flow route matrix needs to be optimized in file size. Since the data was in matrix structure and only consisted of numbers (1–9), it is possible to encode all data in an image. For this purpose, we employed lossless Portable Network Graphics (PNG) format and stored the whole data in a single-color channel of an image (Fig. 5). Each data point in the actual flow route matrix was embedded into each pixel’s red channel and the file size was reduced to 5.3 MB. This new format as an image doesn’t bring an extensive decompression overhead in computation since the image files have optimized native support in web standards to access individual pixels. Our experiments have shown that the overhead is minimal considering conveying the whole raw data takes much more time with an average internet connection than uncompressing it programmatically. Thus, the tradeoff in this may be drawn in favor of this compression for client-side solutions. As in image format, web applications cache the data in the browser which avoid download in future usages. In the case of server-side implementations, while it’s still possible to use this data, it may not be feasible due to the decompression workload. Thus, the data incorporation is better done through either as a binary file or embedded data into the actual code, rather than a compressed image type. Server-side implementation requires transferring the output data (watershed boundary, < 100 KB) for each request, which after certain number of requests exceeds the raw image data (DEM, 5 MB) transfer for client-side implementation.
As mentioned in the Introduction section, watershed delineation solutions provided in the literature requires a server when provided as a service. One-time watershed delineation task is not computationally expensive. However, it is not a trivial task to handle this process on server-side when the application is served on-demand and accessed by thousands of users. Doing such computation on demand for every user is computationally expensive for service providers. This workload that server-side watershed delineation tools handle can be surpassed by handing over the task to the client-side. One drawback might be conveying whole data to the client-side which can be overcome by encoding the data as an image for lower DEM resolutions as mentioned above. Considering the client computers are powerful enough to handle such task and the algorithm is lightweight when it runs for a limited number of times, it can be argued that this is a good practice to handle watershed delineation in client-side rather than server-side when data size stays manageable after image encoding. The transferred data will be cached on the client-side which eliminates future data transfers from server.
Since the elevation data is encoded as an image, it provides the unique opportunity to use GPUs by feeding data into textures. Though GPUs are initially designed to facilitate the image creation process due to their highly parallel structure, it is proven to be a powerful tool for complex scientific computations. To alter the default process to implement a general-purpose application to work with GPUs, one should evaluate the graphics pipeline (i.e. rendering pipeline) considering the application’s needs. Graphics pipeline is a conceptual model that defines the workflow for a GPU to render a 3D object into a 2D representation. The nature of the pipeline depends on the architecture of the underlying hardware as well as the design choices for the intended graphical outcome. Thus, there is not a universally agreed-upon pipeline. However, certain graphical APIs have been created to increase the abstraction and present a more unified interface for GPU manipulation. These APIs include Direct3D, Metal, Vulkan, OpenGL, and WebGL, which is a derivation of OpenGL for use via browsers. In this work, we have implemented the watershed delineation algorithm in WebGL due to its widespread support by industry leaders and the community, its ability to provide a convenient way to use a client-side GPU, and its compatibility with all major browsers via web and mobile. Although the presented approach is built with consideration of the graphical API supported by WebGL, it can easily be modified to work with other APIs.
There are two types of shaders available in WebGL, namely vertex and fragment shaders. Vertex shaders are responsible for generating the clip space coordinates. Fragment shaders allow the application of a procedure to access each pixel in parallel every cycle in order to calculate and assign its color. The 90 m DEM data used in this project is represented as an image with a 5900 × 3680 pixel resolution, meaning that the number of times the fragment shader will be run per frame is 21,712,000, which proves the sensitivity of the code’s efficiency. Some of the best practices include avoiding or minimizing the use of loops and branches in shaders. Another challenge is that only the color value of the current pixel can be manipulated from shader since otherwise would break the parallelism, though other pixels’ colors can be read.
After the image-encoded DEM data is loaded to client-side, a WebGL program is created, linked with the Vertex and Fragment shaders, and bound with the loaded image that is processed into a WebGL Texture. The starting point of the watershed delineation process, which has been selected dynamically by the user, is enumerated as 10 and updated in the image before it is provided to the WebGL program.
The main algorithm is coded in the fragment shader and runs for every pixel independently. Since the fragment shader limits us to modify any other pixel’s color other than itself, the algorithm’s perspective is changed in a way that may seem semantically counter-intuitive. As a reminder, each pixel is encoded with the direction information of water flow. The algorithm reads the current pixel’s value, which then points out to the neighboring pixel that represents its downstream. If that pixel is encoded with value 10, meaning that it is part of the watershed, the current pixel is updated as 10 as well. This process continues until there are no pixel updates in a cycle, which suggests that the watershed is completely delineated within the scope and resolution of the provided DEM data. Pseudocode of this process is described in Fig. 7 and can be observed to have O(1) time complexity.
Optimizations and improvements
Described approach has been successfully implemented and demonstrated that the client-side GPUs can be utilized to delineate watersheds. However, the performance improvements were necessary to make it a viable solution for practical use. Various modifications have been made to better use the language by respecting its limitations and benefiting from its advantages. These include the use of low precision floats, eliminating if conditions by developing simple mathematical equations and caching results of the procedures that are computationally costly or fundamentally slow. Additionally, several architectural optimizations have been designed and implemented that result in significant speedups and worthwhile trade-offs.
As the DEM data is only expressed via the red channel of the image, remaining channels (i.e. gba - green, blue, alpha) have the potential to be utilized in order to decrease the time spent in the fragment shader. One approach is to decrease the texture’s dimensions by a factor of 2 (i.e. reduce the texture to the quarter of its size) by placing the neighboring pixels in the gba color channels. This means treating each channel as if it is a different pixel. By reducing the size of the texture, and thus the number of fragment shader executions per cycle, it decreases the overall runtime significantly. However, the overhead added to the fragment shader to handle this new architecture prevent it to be a viable solution.
Another approach is checking a few steps ahead rather than just the immediate neighbor. However, to check N steps ahead in one cycle basically requires sequentially running the same shader code N times. Thus, the trade-off does not prove to be efficient. A critical design choice when coding the fragment shader is to minimize the dependencies and sequential logic. We have utilized the gba color channels to store the direction values of its three downstream pixels. Fragment shader can calculate all downstream coordinates and read their values without having to wait for the sequential process. Instead, it reads the downstream values in parallel to form a length-4 vector and calculates whether any of them is labeled as the watershed, thanks to the power of GPUs in vector arithmetic.
A watershed usually grows in certain directions by nature. For the first cycle, only the neighbors within the radius of 4 pixels can turn into a watershed. Yet, the fragment shader still applies to all pixels. This workflow introduces a great inefficiency considering the huge size of the DEM data with respect to an average-sized watershed. We have implemented a mechanism to apply the fragment shader to only the pixels that are within the radius of coverage of all the pixels that are labeled as the watershed. Vertex shaders are utilized to define the texture portion that will be forwarded to fragment shaders. Each cycle, the forwarded subset of the texture is updated to expand to cover the newly discovered watershed parts and to shrink to eliminate the non-expanding routes of the watershed.

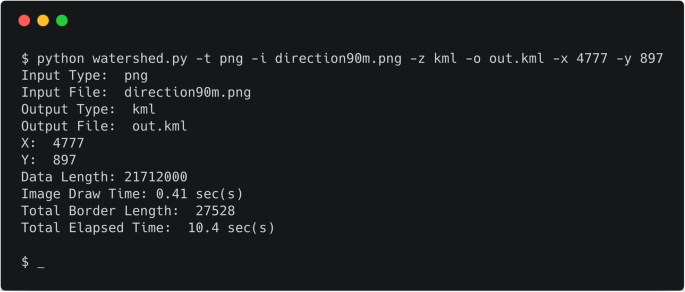

Besides the client-side implementations, we propose four different server-side implementations (i.e. Python, C, Go, Node.js) of the algorithms described in Figs. 3 and 4. All of these implementations have the same functionality and behavior. They can be used through the command line and can be integrated to other programmable resources using either the intended languages’ command line interfaces or importing the package inline. In addition to the encoded PNG file, the server-side programs also accept the binary version of the DEM data as input. When proper input is given through the command line, the output should be the generated KML or coordinates of the intended watershed. It should be noted that these implementations can still be extended for the data that is encoded on raw text, but we do not provide the required application interfaces for such usage.
C implementation was coded on top of C99 and is expected to work with C11 and C18 as well. C version does not depend on any non-core libraries other than the PNG Reference Library (i.e. libpng) that is used for reading the data from the encoded image. Unlike Python, C implementation needs to be compiled. While GCC is used as the first choice of a C compiler during this study, Clang is also tested for compatibility purposes. Compilation can be made with the command “gcc -o watershed.out watershed.c” which produces an executable named as watershed.out. After the compilation, the compiled executable can be run on the command line by “./watershed.out”.
Go implementation does not have any non-core library dependencies and needs to be compiled to an executable similar to C. This implementation was built on top of Go 1.11 and it can be compiled using GC (official Go Compiler). Compilation can be done by “go build” command in the directory that the file watershed.go is stored. After the compilation, the command line tool can be used in a similar fashion with the C implementation. Although running a Go program on the command line is straightforward, importing it into other Go programs requires package formatting, which is provided in the repository along with an example Go program to demonstrate its usage.
The aim of this study is to provide easy to use watershed delineation tools for both server-side and client-side web applications. The performance evaluations of the implementations are reported in this section. Elapsed time reports in Table 2 were measured on two different computers; the client computer that is powered by Intel(R) Core (TM) i7-6800K CPU @ 3.40GHz and 32 GB 2800 MHz RAM, and the server that runs on Intel(R) Xeon(R) E5–2699 v4 @ 2.20GHz CPUs. The results for server-side implementations were obtained using a bash script that measures the elapsed time of the entire run for each implementation. On the client-side, we employed Google Chrome Version 70.0.3538.110 which was the up to date version of Google Chrome at the time of these experiments. Besides the CPU based runs, we also included performance report for WebGL implementation with the same client system that employs an NVIDIA GTX 1080 as the GPU. It should be noted that the performance of client-side implementations for the same system may differ with a different choice of browser and version. These tests were done for a selected point (X = 4777, Y = 897) on flow direction matrix that generates one of the largest watersheds in the state of Iowa with 90 m DEM resolution.
